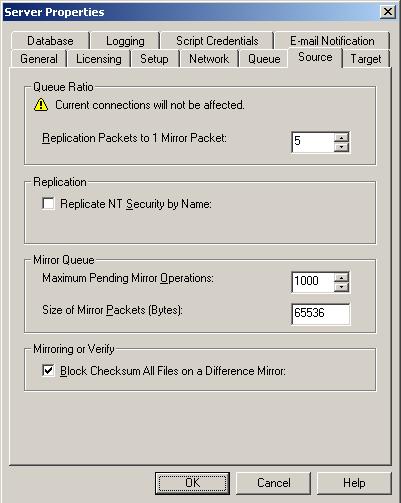

Select the Source tab.
- Replication Packets to 1 Mirror Packet—You can specify the ratio of replication packets to mirror packets that are placed in the source queue. The default value (5) allows Double-Take Availability to dynamically change the ratio as needed based on the amount of replication data in queue. If you set a specific value other than the default (other than 5), the specified value will be used.
- Replicate NT Security by Name—Double-Take Availability allows you to replicate Windows permission attributes by local name as well as security ID (SID). By replicating Windows security by name, you can transmit the owner name with the file. If that user exists on the target, then the SID associated with the user will be applied to the target file ownership. If that user does not exist on the target, then the ownership will be unknown. By default, this option is disabled.
- Domain security model—If you are using a Windows domain security model by assigning users at the domain level, each user is assigned a security ID (SID) at the domain level. When Double-Take Availability replicates a file to the target, the SID is also replicated. Since a user will have the same SID on the source and target, the user will be able to access the file from the target. Therefore, this option is not necessary.
-
Local security model—If you are using a Windows local security model by assigning users at the local level (users that appear on multiple machine will each have different SIDs), you will need to enable this feature so that users can access the data on the target. If you do not enable this feature with a local security model, after a Double-Take Availability file and SID is replicated, a local user will not be able to access the file because the user’s SID on the target machine is different from the SID that was replicated from the source machine.
If you enable this option, make sure that the same groups and users exist on the target as they do on the source. Additionally, you must enable this option on your target server before starting a restoration, because the target is acting like a source during a restoration.
Enabling this option may have an impact on the rate at which Double-Take Availability can commit data on the target. File security attributes are sent to the target during mirroring and replication. The target must obtain the security ID (SID) for the users and groups that are assigned permissions, which takes some time. If the users and groups are not on the target server, the delay can be substantial. The performance impact enabling this option will have will vary depending on the type of file activity and other variables. For instance, it will not affect the overall performance of large database files much (since there is a lot of data, but only a few file permissions), but may affect the performance of user files significantly (since there are often thousands of files, each with permissions). In general, the performance impact will only be noticed during mirrors since that is when the target workload is greatest.
Regardless of the security model you are using, if you create new user accounts on the source, you should start a remirror so the new user account information associated with any files in your replication set can be transmitted to the target.
- Maximum Pending Mirror Operations—This option is the maximum number of mirror operations that are queued on the source. The default setting is 1000. If, during mirroring, the mirror queued statistic regularly shows low numbers, for example, less than 50, this value can be increased to allow Double-Take Availability to queue more data for transfer.
- Size of Mirror Packets—This option determines the size of the mirror packets that Double-Take Availability transmits. The default setting is 65536 bytes. You may want to consider increasing this value in a high latency environment (greater than 100 ms response times).
-
Block Checksum All Files on a Difference Mirror—This option allows a file difference mirror to check each block of data, regardless of the file attributes. If this option is not marked, Double-Take Availability will assume files are synchronized if their attributes match.
Note: Database applications may update files without changing the date, time, or file size. Therefore, if you are using database applications, you should use the Block Checksum All Files on a Difference Mirror option to ensure proper file comparisons.
If you are not using database applications, disabling this option will shorten mirror times.
